金屬燒結刀
- DICING BLADES

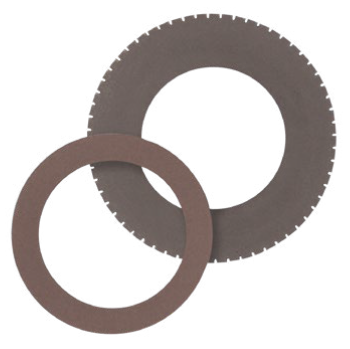

- > METAL SINTERED BLADES
FEATURES
Midrange wear between Resin and Nickel
With a slower wear rate than Resin but faster than Nickel, Metal-bond (Sintered) blades are best suited for retaining package shape and size in applications such as:
BGA
Soft Alumina
TiC
LTCC
Ferrite
BLADE THICKNESS
From 80 µm to 1500 µm
DIAMOND GRIT SIZE
From 2 µm to 70 µm
SERRATIONS
Serrations available for sintered blades as well as for various edge shapes
以下是為了能夠滿足段落所需的長度而定義的無意義內文，請自行參酌編排。
| Diamond grit size (µ) | Product | Material | Matrix |
|---|---|---|---|
| 45 up to 55 | BGA , LGA (Tape & Tape-less mounting method) | FR4, Plastic & Molding | C2/R5 |
| 30 up to 50 | QFN ( Half Etched ) | Cu leadframe + molding | Q7/C1 |
| 35 up to 45 | Passive & Active Devices. Communication Modules | LTCC | P1/P9 |
| 35 up to 45 | SAW Devices, RF Package | HTCC | P1 |
| 13 up to 25 | Camera Module | Glass/ IR Glass | P1/P5 |
| 25 up to 45 | Ceramic Packages | Alumina | P5/P9 |
METAL SINTERED BLADES PART NUMBER DESCRIPTION
NOVUS – METAL SINTERED BLADES PART NUMBER DESCRIPTION
